Katadyn description: Technical data FILTER PORE SIZE: 0.2 microns (0.0002 mm)OUTPUT: approximately ½ litre /min. CERAMIC FILTER ELEMENT: good for ~ 7000 litres (depends on contamination of water and cleaning frequency of element) WEIGHT: 250g DIMENSIONS: length: 18 cm, width: 9 cm thickness: 4.5 cm MATERIALS: filter element: Katadyn ceramic // casing: advanced polymer, food proof SUPPLIED WITH: -complete filter unit with integrated abrasive brush and test gauge -80 cm intake hose stowed in the base of filter -handy nylon bag |
 |

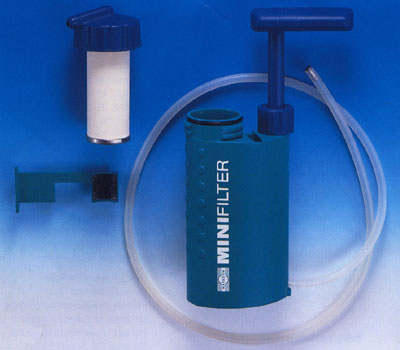

Exploded view showing components |

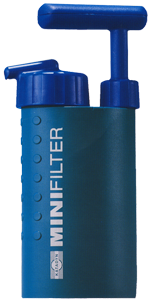

Fresh, germ-free drinking water - for anyone anytime The Mini Filter is a practical, handy unit for turning water of dubious quality into clear, germfree drinking water. A filter element made from patented Katadyn ceramic retains the pathogens of dangerous diseases, such as cholera, typhoid, dysentery, colibacillosis, amoebic dysentery, etc. Even the chemically resistant giardia is filtered out.
Simply use the integral pump to force the water through minute pores. These pores are so small (0.2 microns - 0.0002 mm), that any worm eggs, protozoa, in particular bacteria and even spores cannot pass through the filter, but stick to the outer surface of the ceramic. Katadyn silver is firmly incorporated in the ceramic preventing bacteria from penetrating the inside of the filter element. Silver interferes with the supply of nutrient to the bacterial cell, thus, depriving it of one of its most important basics of life (part of the oligodynamic silver ion principle). Subsequently, the bacterium dies.
No agents or additives needed. Disinfection by using the Mini Filter is a single, mechanical process. No additional filtering stages or any pre- or post-treatment agents are required.
Easy maintenance:-
Once in place the element can be regenerated over and over again - up to 100 times - by simply brushing the wet ceramic surface clean. When worn out, it is simply replaced by a new element. The same -unit disinfects and filters up to 7,000 litres of water, depending on the contamination of the raw water and the number of cleanings required. All operating components are accommodated in the casing: at the top, the abrasive brush with a control gauge for checking minimum diameter of the filter element. The intake hose fits into the base of the casing.
Katadyn portable filters are available in various sizes. Armies, aid and civil defence organizations, expeditions, trekkers, etc. have trusted Katadyn filtration over the last decades already.
The Katadyn Pocket Filter has earned the reputation of being the world's best and most reliable water filter.
The Mini Filter now makes Katadyn technology available to everyone - wherever the quality of the water is uncertain (on camping sites, in remote hotels, on rail-trips, aboard ships, for hikers and bikers.
